SLIDE LIMIT SWITCHES & BIGFOOT OVERRIDE

CATEGORY:  CUSTOMIZED & MODIFIED

TOPIC: UPGRADING, ADDING, FIXING
Posted:  26 Jun 2018 11:27 #26

              03 Jul 2018 01:07 #27
Posted By:  Alloy

See Forum Post HERE



SLIDE LIMIT SWITCHES

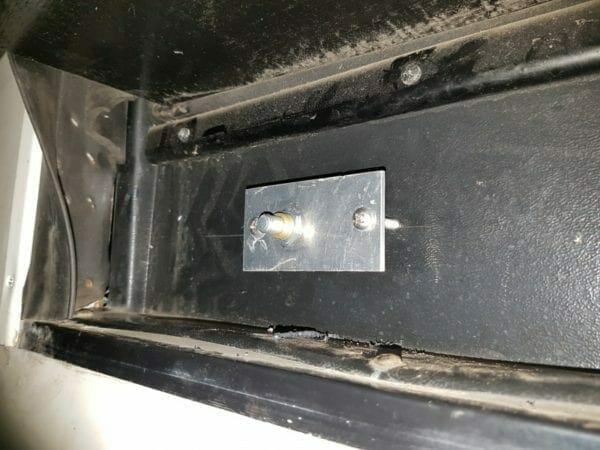

The limit switch for the slide.

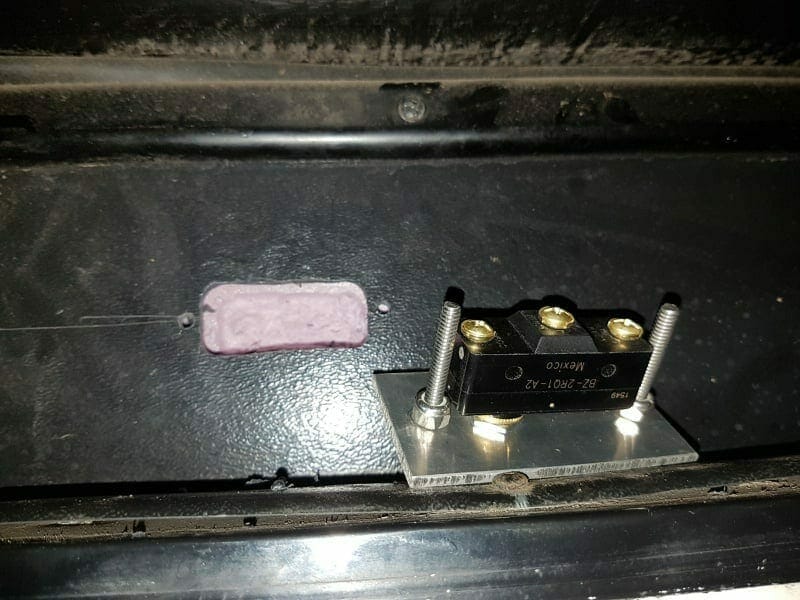

Hope to keep the seals from being flattened and the flanges around the outside of the slide from bending. The microswitch is connected to a forward/reverse relay…….can’t believe I don’t have a picture of it : ) The plastic is threaded so the depth of the microswitch can be adjusted with the screws. Also insulated behind the plastic panel below the slide.

If you look closely at the bottom corner where the slide seal ends.  The little bit of green/white is wires on the inside of the trailer…..be a good mouse hole….have to seal that up.

These work 100%. An excellent modification that will prevent the flanges around the slide from bending.

BIGFOOT OVERRIDE

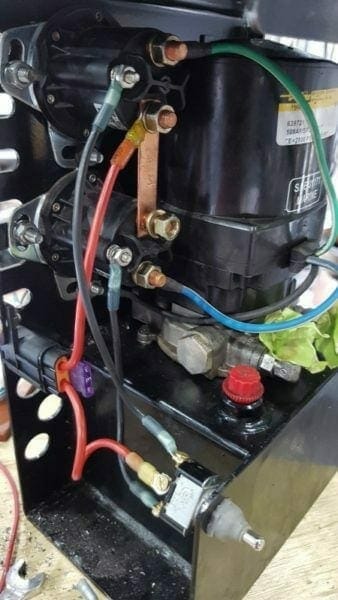

Bigfoot Override
– SPDT (Cole Hersee) switch for up and down
– Waterproof ATO fuse (3 amp) holder to protect the wiring and relays
