SLIDE-OUT MOTOR BOLTS & SHAFT SUPPORT FIX (Follow-up)

by

CATEGORY: CUSTOMIZED & MODIFIED

TOPIC: SLIDE-OUT MOTOR BOLTS & SHAFT SUPPORT FIX
Posted: 20 Jun 2018 18:32 #243
Posted By: TimCar

See Forum Post HERE

W1245062 CSO-5013W

12 Tooth Gear for Motor Shaft, with Hex

 $39.22 x 1 $39.22

Just for the record, here is what the new Pinion Gear looks like and measures.
My thanks to FalconHunter for the link to it.

http://www.rbwstore.com/CSO-5013W-12-To … p_160.html

Click on any Image to open in Lightbox View

[siteorigin_widget class=”SiteOrigin_Widgets_ImageGrid_Widget”][/siteorigin_widget]

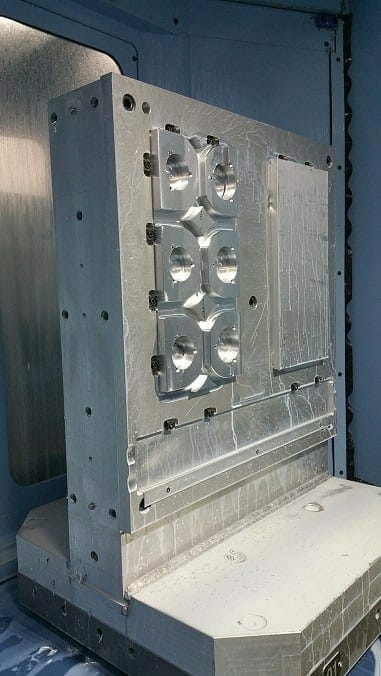

Finalized the design and started cutting chips today. The drop-offs are long enough to make 3 sets each. Next up is to drill/ counterbore/thread the side holes then cut them into separate parts.

Will test on my SB3 this weekend to see what needs to be adjusted…
