SHORE POWER PLUGS

by

CATEGORY: CUSTOMIZED & MODIFIED

TOPIC: UPGRADING – ADDING – FIXING
Posted:  26 Apr 2018 22:28 #20
Posted By:  Alloy

See Forum Post HERE

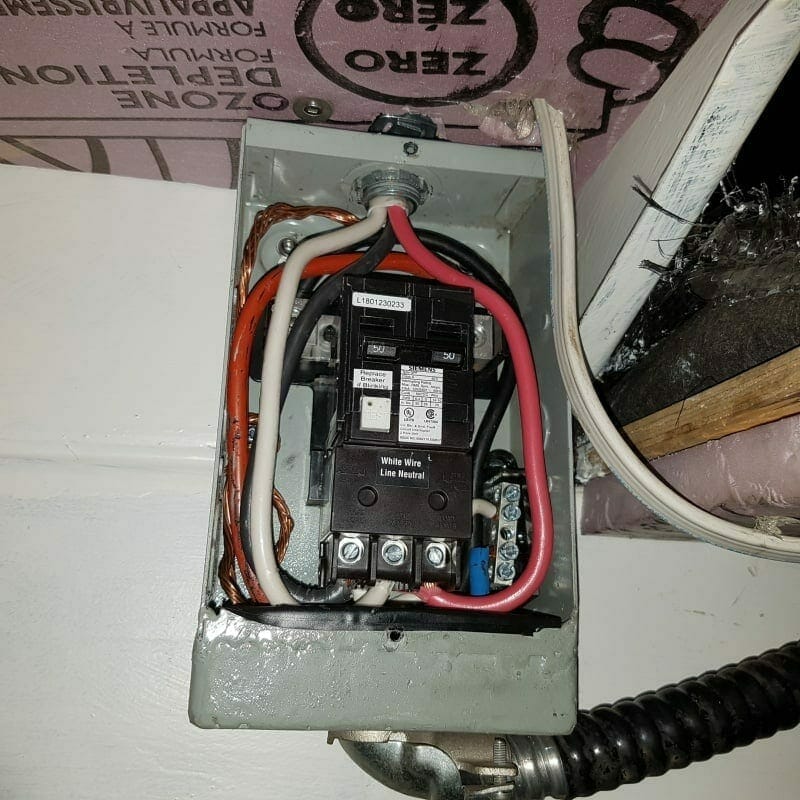

There is 3 shore power plugs 50amp front left, back left and a 30amp front right. All are protected with GFI breakers. This means the whole trailer is GFI protected. Had to extend the bottom of the 50amp boxes to fit the GFI breakers…not ideal.  All the 50amp wiring was upgraded from 8ga to 6ga.  I was concerned NMD may get damaged so I used Teck cable from the breakers to the 50amp receptacles.



With the 100amp charging from the truck we can power the fridge with AC instead of propane while traveling ( & sometimes while camping on solar) but I didn’t want to leave the 3000W inverter on more than necessary so I added an inexpensive 600W sine wave inverter.

The 600W is set up with receptacles close to the TV, propane fridge, WIFI router, and Synology NAS.  A 15amp electronic (quiet) transfer switch is between the 600W & House Service or items can be manually switched as the receptacles are next to each other.
